Impala Core Tray 5

“Designed to be the Strongest tray in the Impala Range”

Impala 5 Plastic Core Tray

The preferred core tray for above-ground applications. Capable of storing full metres of core at a time.

  • Designed to be our strongest tray yet

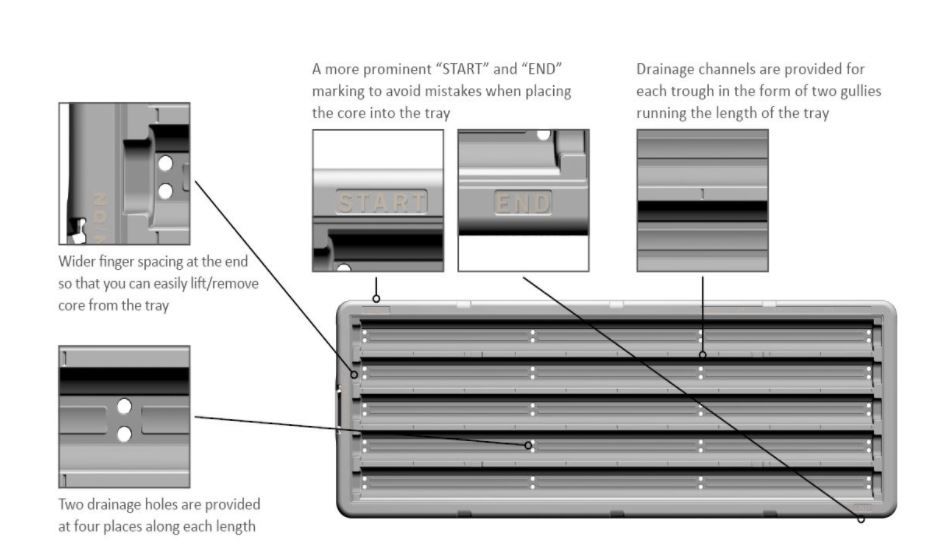

  • A more prominent “START” and “END” marking to avoid mistakes when placing the core into the tray
  • Wider finger spacing at the end so that you can easily lift/remove core from the tray

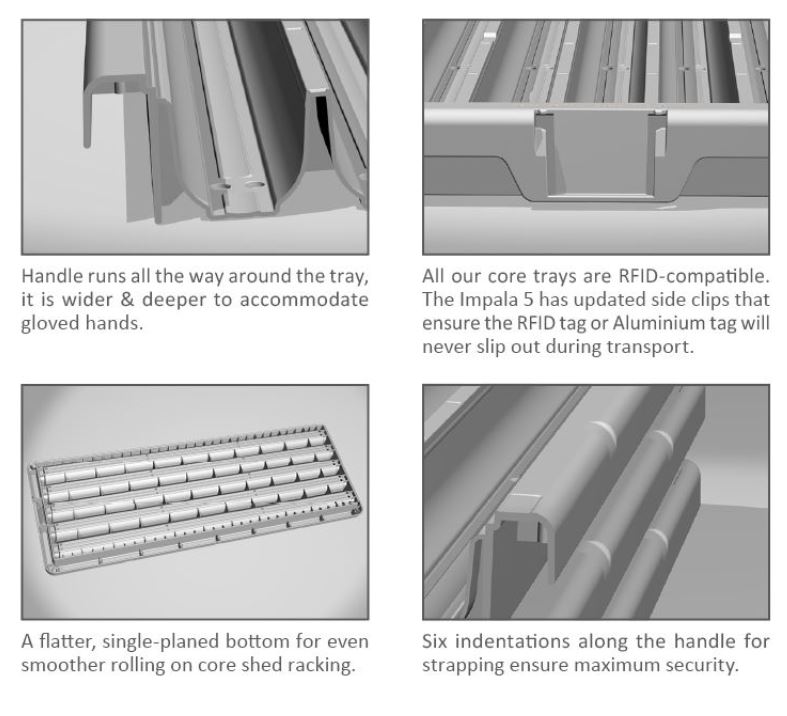

  • Handle runs all the way around the tray, it is wider & deeper to accommodate gloved hands
  • 5mm additional height around external wall ensures safer stacking whilst holding broken core. Internal channels have remained shallow as per customer preference
  • A flatter, single-planed bottom for even smoother rolling on core shed racking
  • Six indentations along the handle for strapping ensure maximum security during transport and handling
  • All our core trays are RFID-compatible. The Impala 5 has updated side clips that ensure the RFID tag or Aluminium tag will never slip out during transport
  • Drainage channels are provided for each trough in the form of two gullies running the length of the tray
  • Lids have integral clips for securing

black grey white dots


Grey colour ex stock. White or Black to Order



Impala 5 Plastic Core Trays

SKUDESCRIPTIONSIZE
1126-30501-GREY Impala 5 Plastic Core Tray N2 - 5 Row
1126-30502-GREY Impala 5 Plastic Core Tray H - 4 Row

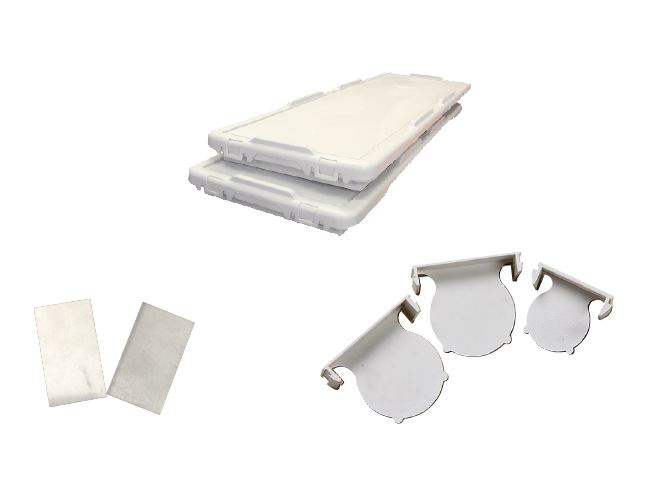

Impala  5 Accessories

SKUDESCRIPTIONUOM
1126-30500-GREY Core Tray Plastic Lid Impala 5 Each
1156-00120 Aluminium Tag Hundred
1126-30102 Core Tray Plastic Clips Each
1124-00001 Core Tray Plastic Marker N2 Hundred
1124-00000 Core Tray Plastic Marker H Hundred


Impala 5 Measurements

N2 Core TrayH Core Tray

»  Overall Length: 1100mm
»  Usable Length: 1000mm
»  Width: 390mm
»  Height: 65mm
»  Weight: 2.7kg
»  Core Capacity: 5 rows
»  Pallet Quantity: 93
»  Pallet Dims: 1180 x 1100 x 1990mm
»  Pallet Weight: 280kg
»  20ft Container: 930 trays
»  40ft Container: 1860 trays

» Overall Length: 1100mm
» Usable Length: 1000mm
» Width: 390mm
» Height: 75mm
» Weight: 2.9kg
» Core Capacity: 4 rows
» Pallet Quantity: 75
» Pallet Dims: 1180 x 1100 x 1960mm
» Pallet Weight: 250kg
» 20ft Container: 750 trays
» 40ft Container: 1500 trays

The tray is manufactured in a material for temperate climates to +55°C as standard. Trays are also UV stablised and protected, giving longer life in the field.

Testimonials

 We have been using Impala 3 core trays since 2016 and find them a lot more user friendly than the previous metal trays we once used.  The added bonus of the easily attached lids has help with transportation and reduced the chance of core loss.  In an industry like mining with a safety first mentality I would recommend Impala 3 core trays for any in pit or exploration drilling program.

testimonial newmont logoMichael Mulholland
Newmont Boddington Gold
Pit Technician Supervisor
